FrSky Ethos Missing Sensors

Ethos Missing Sensors

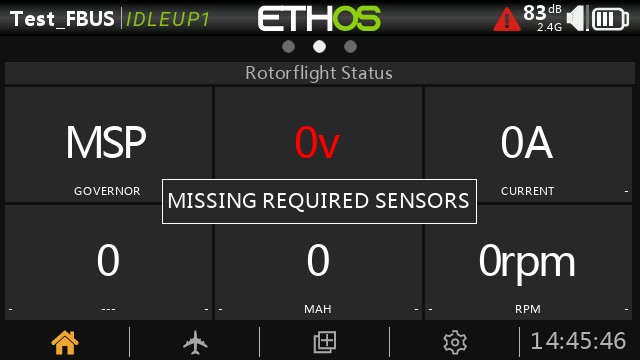

This guide will help with the error shown below: This error is shown where the Ethos Suite LUA is not receiving a sensor(s) from the FBL it requires to operate.

Ethos

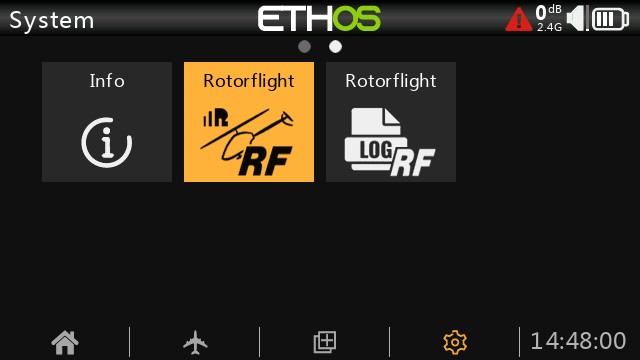

Press the [SYS] key and scroll to the Rotorflight LUA, enter the LUA

Ethos

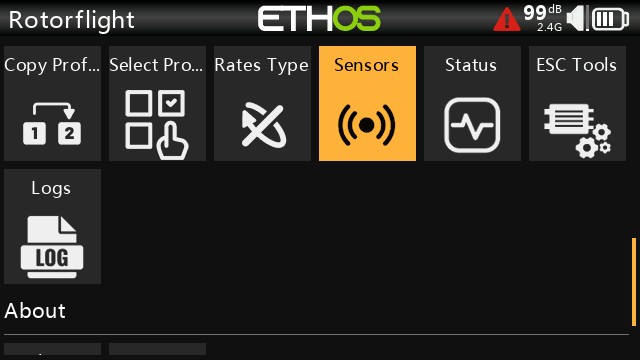

Scroll to the sensors tab and enter.

Ethos

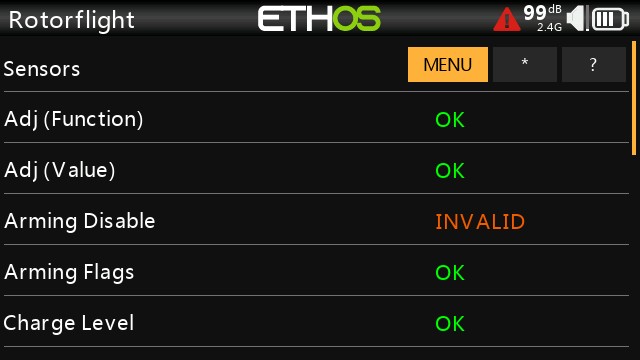

An image similar to this will appear showing a missing sensor or sensors.

Ethos

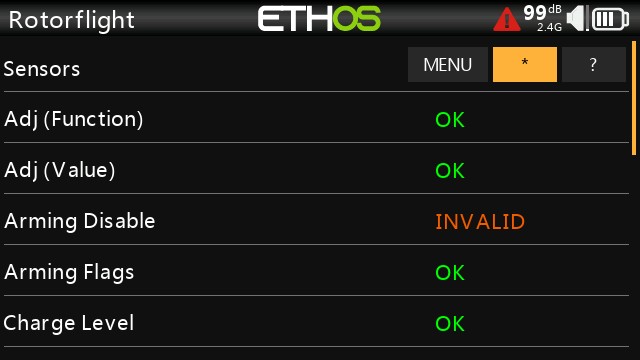

Highlight and press the * icon at the top

Ethos

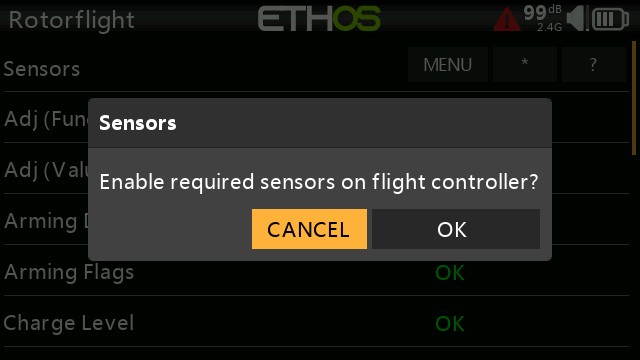

The flight controller will resart after the changes are applied.

Ethos

NOTE: If the * option is not available you will be required to upgrade your Rotorflight firmware to at least RC1 or add the sensors manualy in the receiver \ telemetry options, delete all and re-discover sensors.

You can as a short cut, if so desired, enter this in the cli then enter save.

set telemetry_sensors = 3,5,6,15,18,23,52,60,90,91,93,95,96,99,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0

Again, delete and re-discover sensors

NOTE: At this point its good practice to re-start the radio to remove any cache values previously stored.
